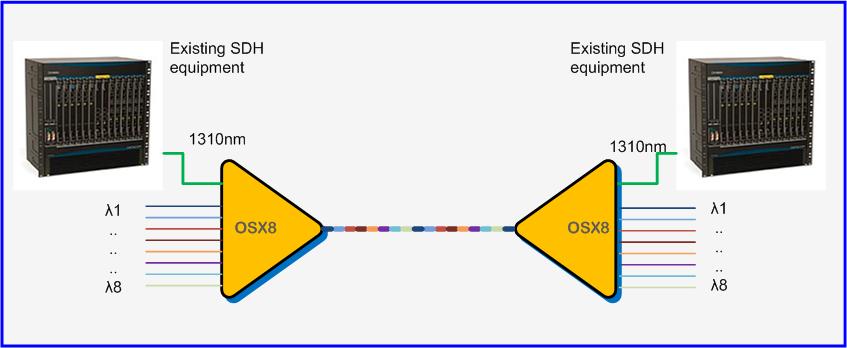

Application Example

The OSX8+1 builds an overlay fiber optic infra-structure over an existing network, which is operated with 1310nm standard wavelength. The existing MAN / WAN can be further used without any need of change. This making the upgrade of the existing network easy and safe. More bandwidth, more services more protection can be offered on the existing infra-structure.
Saving costs, invest and rack space with ax Multi service Platform.

OSX8+1 - Extended 8-ch. CWDM Splitter

The OSX8+1 is a compact 8-channel passive optical CWDM splitter plus(!) 1310nm express port. The OSX8+1 is the perfect extension of your existing fiber network. The standard wavelength of 1310nm can be used without any change and the OSX8+1 gives the possibility to transport eight additional services along the installed network including Ethernet, ATM, SDH/Sonet and FiberChannel. Low insertion loss and the highly integrated design make the OSX8+1 to an unique member of arcutronix Transmission family.

The OSX8+1 passive splitter is easy to install in the arcutronix Multi service Platform and is suitable for a secure and unattended operation. It can be housed in the desktop/wall-mounted or 19’’ racks for high density. A mixture with other components of arcutronix Multi Service Platform makes it easy to upgrade your network.

OSX8+1 Datasheet

DS-OSX8+1 (.pdf, 248 kb)

Features:

Passive optical splitter
Multiple services over one line
Highest flexibility due to combination of active arcutronix components and CWDM transmission technology

8x CWDM Channels
Plus 1x 1310nm Express port

CWDM grid accord to ITU-T G.694.2, spacing 20 nm
Fully protocol transparent
Low insertion loss
No power supply necessary

3RU design
Easy installation into all housings and racks of the arcutronix Multi Service Platform

Fully interoperable with FCX- and EDX-Family
